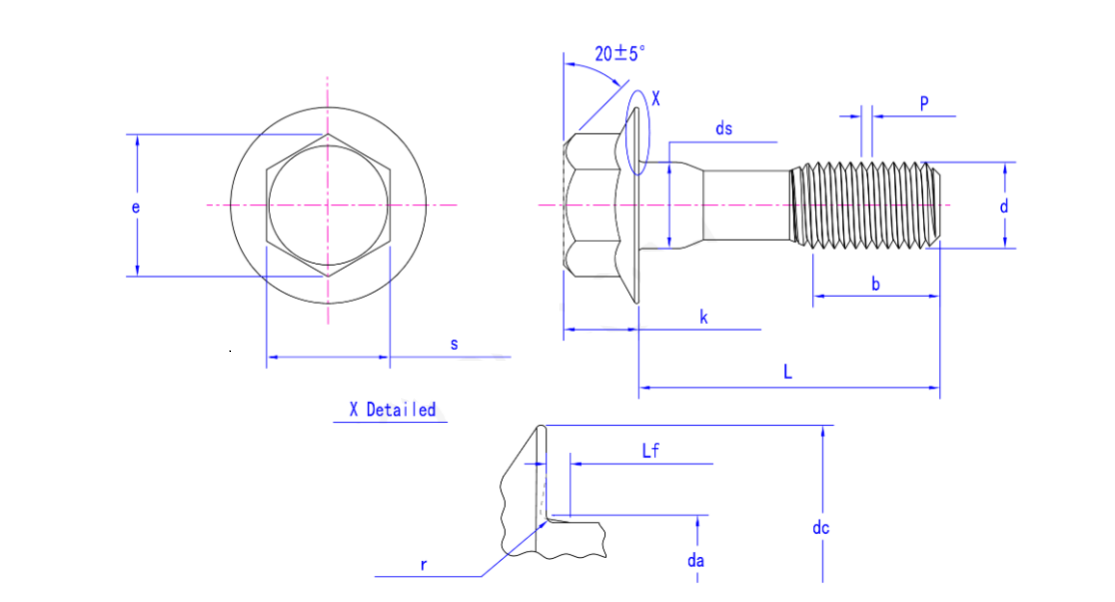

Stainless Steel DIN 6922-1983 Hexagon flange bolts with reduced shank - standard design
Product Overview:
Hexagonal head flange thin rod bolt is a kind of multi-functional fastener, which is composed of hexagonal head, flange and thin rod screw. Its unique thin rod design uses fine thread and smaller thread spacing, so it can withstand greater tension, especially for applications requiring variable force connections. The head is a standard hexagonal shape for easy rotary fastening with tools such as wrenches. The design of the flange increases the contact area with the connected part, disperses the pressure in the fastening process, and improves the stability and bearing capacity of the connection.
Grade:
NO
Stainless Steel DIN 6922-1983 Hexagon flange bolts with reduced shank - standard design Details
Hexagon flange bolt with reduced shank - standard design is a powerful, widely used fastener product. The thread specification range from M5 to M20, with a pitch varying from 0.8mm to 2.5mm. The optional strength class of stainless steel is A2-70 according to DIN 267-11. According to customer needs, surface treatments such as blackening (heating or chemical), electric galvanizing, hot dipping zinc can be carried out to improve the corrosion resistance and aesthetics of bolts.
Product Characteristics
Application
It is widely used in various mechanical equipment, building structures, automotive industry and other fields for connecting and fixing various parts and components. Its unique flange construction and thin rod design allow it to provide powerful connections in limited Spaces while keeping weight and cost low.
Product Characteristics
- Hexagonal head design: The bolt head is designed to be hexagonal, which is easy to tighten or remove with tools such as a wrench or socket.
- Flange structure: there is an enlarged flange surface under the bolt head, which increases the contact area between the bolt and the connected part, and improves the stability and bearing capacity of the connection.
- Thin rod structure: The bolt rod is relatively thin, suitable for applications requiring less space or lower weight.
Application
It is widely used in various mechanical equipment, building structures, automotive industry and other fields for connecting and fixing various parts and components. Its unique flange construction and thin rod design allow it to provide powerful connections in limited Spaces while keeping weight and cost low.
- Mechanical equipment: plays an important role in the structural connection of heavy machinery, wind power equipment and other fields.
- Building steel structure: used for steel structure connection of large buildings such as Bridges and high-rise buildings.
- Automotive industry: Used to connect engine, chassis and other components in the automotive manufacturing process.
